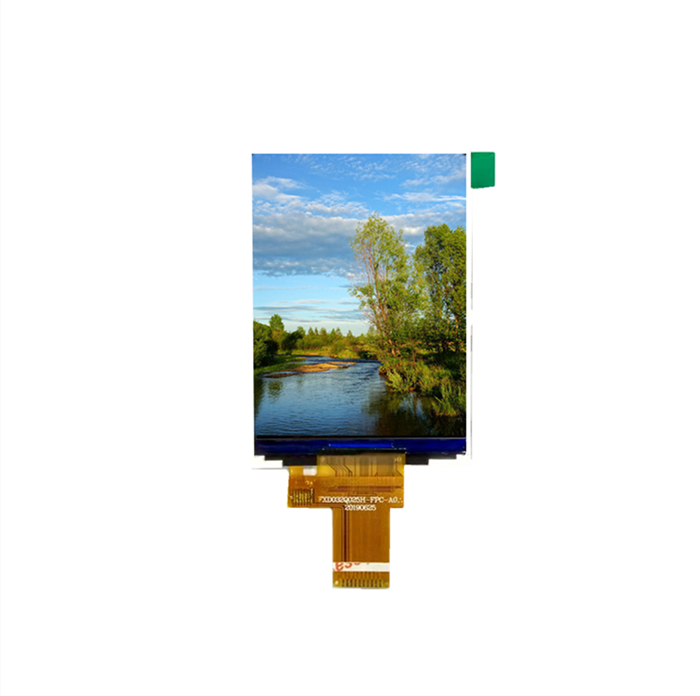

3.2" TFT 240(RGB)*320
| Item | TFT LCD Display |
| Model | FXD032Q25H-A |
| Resolution | 240*RGB*320 |
| Brand | Fexda |
| Display Size | 3.2inch |
| Driver IC | HX8347I |
| Viewing Angle | 6 o'clock |
| PIN | 10PIN |
| Polarize Type | Negative,Transmissive |
| Gray Invertion Direction | 12 o'clock |
| Connection Type | FPC |
| Operating Voltage | 2.8-3.3V |
| Operating Temp | -20°C to 70°C |
| Storage Temp | -30°C to 80°C |
| Active Area | 48.6*64.8mm |
| Outline dimention | 53.6*76*2.47mm |
